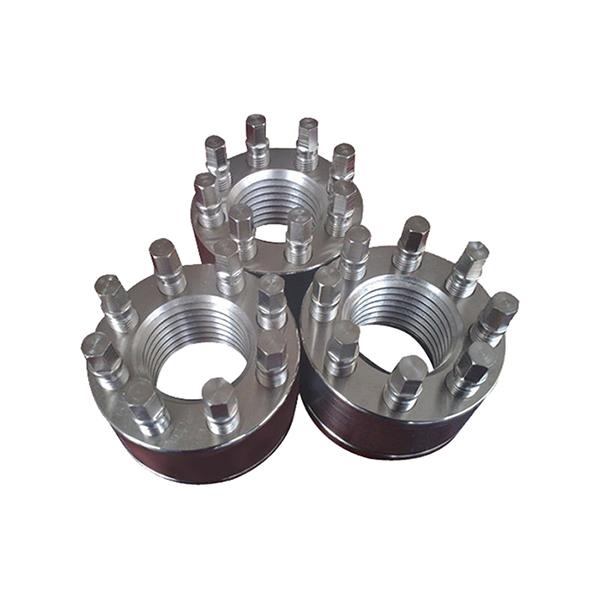

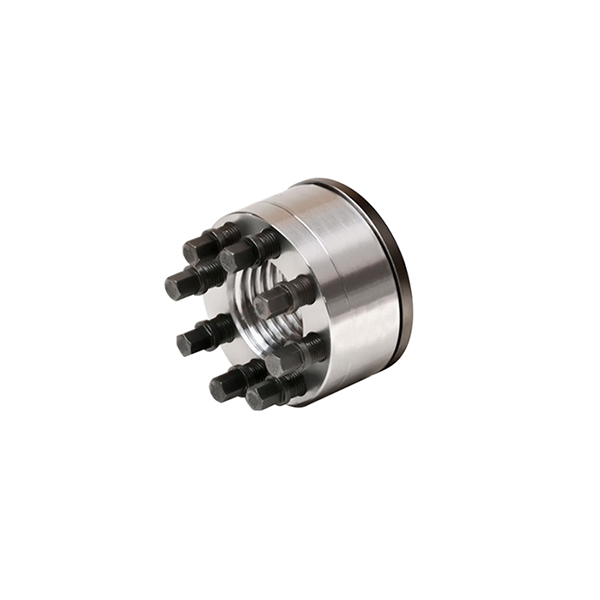

Super Nut
Product Descriptions

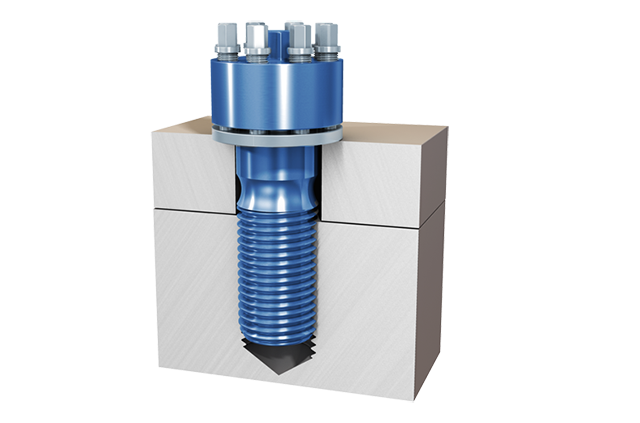

Super bolt is used together with multiple lifting screws to generate the required pre-tightening force so as to reach the purpose of tensioning the screw to fasten the workpiece.
Product Features
Easy to use: get accurate pre-tightening force through the manual torque wrench.
Suitable for different installation location, small space, explosion-proof and high temperature and other harsh environments
Simple structure and reusable.
Technical Parameters
|
|
Bolt size （M） |
Dimensions |
Lifting Bolt |
8.8 grade bolt |
10.9 grade bolt |
Weight |
|||||||
|
|
|
D |
d |
b |
K |
M |
Quantity |
Tightening torque |
Pre-tightening force |
Tightening torque |
Pre-tightening force |
|
|
|
|
|
mm |
mm |
mm |
mm |
|
PCS |
(N.M) |
(N) |
(N.M) |
(N) |
(Kg) |
|
|
KET-CLM-M24 |
24 |
52 |
39 |
24 |
4 |
M8X36 |
8 |
47 |
188,200 |
61 |
244,300 |
0.4 |
|
|
KET-CLM-M27 |
27 |
63 |
45 |
27 |
4 |
M10X45 |
8 |
60 |
238,200 |
77 |
309,200 |
0.7 |
|
|
KET-CLM-M30 |
30 |
65 |
48 |
30 |
4 |
M10X50 |
8 |
73 |
293,700 |
95 |
381,250 |
0.8 |
|
|
KET-CLM-M33 |
33 |
72 |
53 |
32 |
5 |
M12X50 |
8 |
89 |
355,800 |
116 |
461,880 |
1.0 |
|
|
KET-CLM-M36 |
36 |
78 |
58 |
34 |
5 |
M12X50 |
8 |
106 |
423,430 |
137 |
549,650 |
1.3 |
|
|
KET-CLM-M39 |
39 |
81 |
61 |
38 |
5 |
M12X56 |
10 |
99 |
496,950 |
129 |
645,100 |
1.6 |
|
|
KET-CLM-M42 |
42 |
92 |
72 |
40 |
5 |
M12X58 |
12 |
96 |
576,350 |
125 |
748,150 |
2.1 |
|
|
KET-CLM-M45 |
45 |
92 |
72 |
42 |
6 |
M12X60 |
12 |
110 |
661,620 |
143 |
858,850 |
2.2 |
|
|
KET-CLM-M48 |
48 |
100 |
75 |
45 |
6 |
M16X65 |
8 |
188 |
752,780 |
244 |
977,150 |
2.8 |
|
|
KET-CLM-M52 |
52 |
108 |
80 |
48 |
6 |
M16X65 |
8 |
221 |
883,460 |
287 |
1,146,800 |
3.5 |
|
|
KET-CLM-M56 |
56 |
109 |
84 |
50 |
6 |
M16X70 |
10 |
205 |
1,024,600 |
266 |
1,330,000 |
3.7 |
|
|
KET-CLM-M60 |
60 |
113 |
88 |
55 |
6 |
M16X75 |
10 |
235 |
1,176,200 |
67 |
1,526,800 |
4.4 |
|
|
KET-CLM-M64 |
64 |
114 |
92 |
58 |
8 |
M16X80 |
10 |
268 |
1,338,270 |
347 |
1,737,180 |
4.7 |
|
|
KET-CLM-M68 |
68 |
122 |
96 |
60 |
8 |
M16X80 |
10 |
302 |
1,510,780 |
292 |
1,961,100 |
5.6 |
|
|
KET-CLM-M72 |
72 |
126 |
100 |
65 |
8 |
M16X85 |
12 |
282 |
1,693,750 |
366 |
2,198,350 |
6.5 |
|
|
KET-CLM-M76 |
76 |
129 |
104 |
68 |
8 |
M16X90 |
12 |
315 |
1,887,170 |
408 |
2,449,700 |
7.1 |
|
|
KET-CLM-M80 |
80 |
134 |
108 |
70 |
8 |
M16X90 |
12 |
349 |
2,091,000 |
452 |
2,714,300 |
7.9 |
|
|
KET-CLM-M90 |
90 |
156 |
130 |
78 |
8 |
M16X100 |
16 |
331 |
2,646,500 |
429 |
3,435,340 |
11.9 |
|
|
KET-CLM-M100 |
100 |
192 |
160 |
86 |
8 |
M20X110 |
16 |
502 |
3,267,250 |
651 |
4,241,160 |
19.8 |
|
|
KET-CLM-M110 |
110 |
224 |
192 |
95 |
10 |
M20X120 |
20 |
486 |
3,953,250 |
630 |
5,131,800 |
29.8 |
|
|
KET-CLM-M120 |
120 |
238 |
154/200 |
108 |
10 |
M20X130 |
24 |
482 |
4,703,700 |
453 |
6,614,950 |
38.2 |
|
|
KET-CLM-M140 |
140 |
268 |
174/236 |
126 |
12 |
M20X150 |
36 |
437 |
6,403,500 |
567 |
8,311,740 |
56.6 |
|
|
KET-CLM-M160 |
160 |
288 |
194/256 |
144 |
12 |
M20X165 |
36 |
570 |
8,364,100 |
741 |
15,856,600 |
74.6 |
|
